Launched in 2004, SubCue-Mini Datalogger, has been produced for researchers interested in measuring internal temperatures of small, mouse-sized, research animals. The biocompatible surface allows surgical implantation into animals and provides long-term, internal temperature data collection.

   The SubCue-Mini Dataloggers are ideally suited for temperature measurements in the following situations:

  • Suitable for mouse sized research animals Strategies for refinement of abdominal device implantation in mice:
  • Long-term environmental temperature monitoring
  • Animal research that is behaviour or interaction based
  • Animal research that is activity or mobility based
  • During physiological or psychological testing
  • Remote, contagious or inaccessible locations

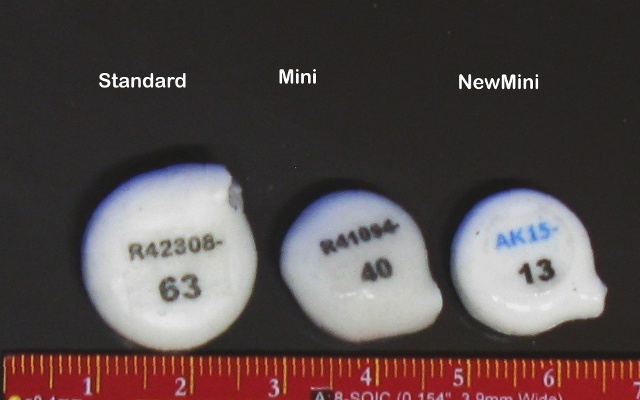

  • In 2020, the new mini was launched. Uses the same Dallas semiconductor DS1921H chipset and Panasonic BR1225A lithium battery as the previous version. More robustly packaged.




  Technical Specifications

mini (2004 to present)

Technical Specifications                  newmini (2021)

Software Requirements

Windows 9x or higher Operating System

Software Requirements

Windows 9x or higher Operating System

Coating

Dow Corning 732 silicone (Biocompatible)

Coating

Dow Corning 732 silicone (Biocompatible)

Configuration

Self contained in capsule

Configuration

Self contained in capsule

Measured Temperature Range

+15°C to +46°C

Measured Temperature Range

+15°C to +46°C

Resolution

0.125°C

Resolution

0.125°C

Min Size/Volume

~2.5g / 1.5cc

Min Size/Volume

~2.1g / 1.1cc





16mm diameter x 6mm thick

Calibration

Linear over Lifetime

Calibration

Linear over Lifetime

Battery

Lithium

Battery

Lithium

Battery Life

2 to 3 years**

Battery Life

2 to 3 years

Interference

None

Interference

None

Data Viewing

On download

Data Viewing

On download

Infrastructure

Connector Cable and Software

Infrastructure

Connector Cable and Software

Storage

Store dry at room temperature

Storage

Store dry at room temperature

·       Datalogger should be no more than 10% of the animal's body weight.

·       ** normally observed battery life…
